Nagmani Lathe

Cone Pulley Extra Heavy Duty Lathe Machine From Nagmani (INDIA)

EX HD-457/508/558/610/660/710/760

"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

Cone Pulley Extra Heavy duty Lathe Machine is used for the Tool-room Purpose along with the Medium Size of Components (Industries such as ship building, mining, textile, oil etc.) to be make and power plants, repairing shops, steel rolling mills, Rubber Roll mill, Extra Heavy Works and many purposes in various industries.

Get Catalogue GET E-Catalogue Have Questions? Question

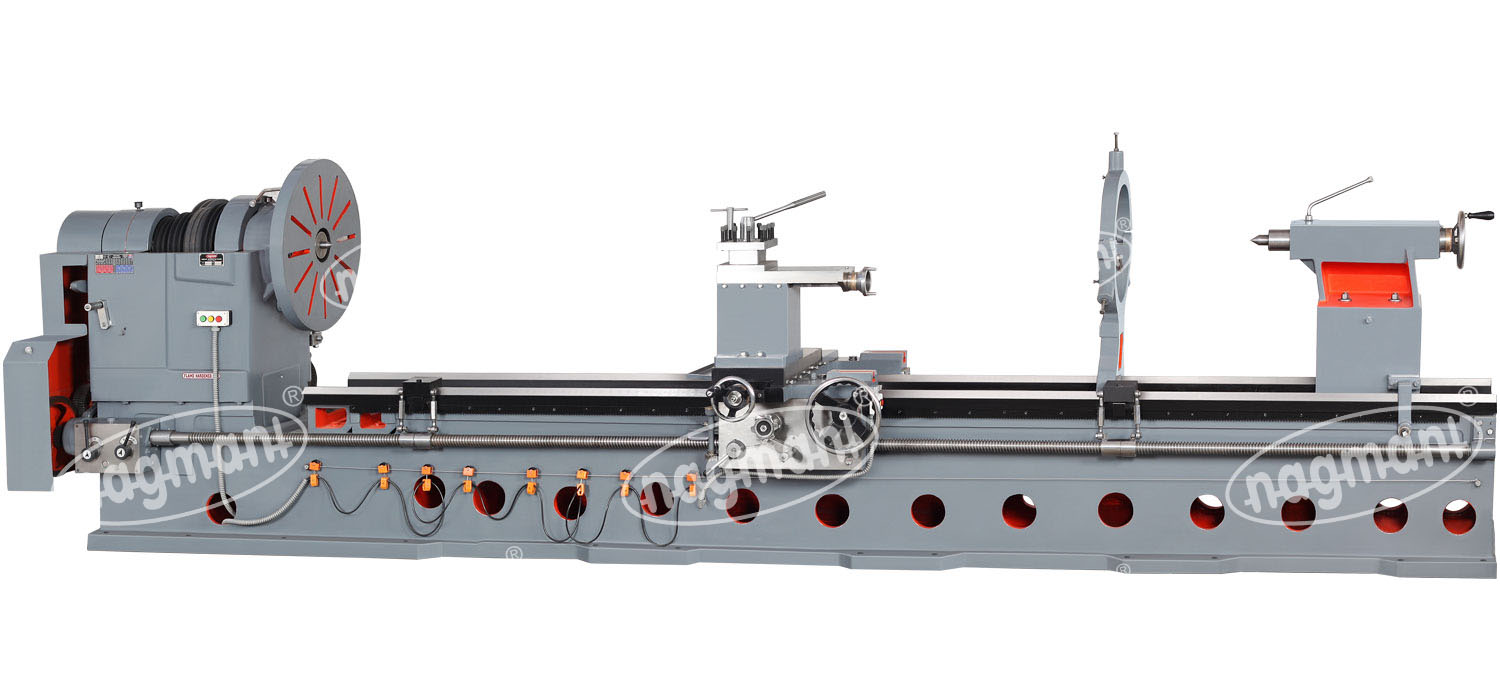

Cone Pulley Extra Heavy Duty Lathe Machine
Available Colors
Buyer Blue
With Silver Grey
Vendra With
Silver Grey
Full
Ad. Grey
Full
Light Olive
Specification Features Accessories
Bed EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
Flat & "V" Guide Ways With Gap / Leg type or Planner type
Width of Bed 18"(457) 20"(508) 22"(558) 24"(610) 26"(660) 28"(710) 30"(760)
Length of Gap 6"(150) 6"(150) 6"(150) 6"(150) 6"(150) 6"(150) 6"(150)
Length of Gap in Front of Fce Plate 8"(205) 8"(205mm) 10"(250) 10"(250) 10"(250) 10"(250) 10"(250)
Capacity EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
Height of Centre 18"(457) 20"(508) 22"(558) 24"(610) 26"(660) 28"(710) 30"(760)
Swing over Bed 34"(850) 38"(950) 42"(1050) 46"(1150) 50"(1250) 54"(1350) 58"(1450)
Swing over Cross Slide 24"(600) 27.5"(685) 31.5"(785) 35.5"(885) 38"(950) 42"(1050) 46.5"(1160)
Swing in Gap 46.4"(1160) 50.8"(1270) 54.4"(1360) 58.4"(1460) 62.6"(1565) 66.4"(1660) 70.8"(1770)
Movement of Cross Slide 16"(400) 20"(500) 22"(550) 24"(600) 26"(650) 28"(700) 30"(750)
Movement of Compound Slide 9"(225) 9"(225) 9"(225) 9.2"(230) 9.2"(230) 9.2"(230) 9.2"(230)
Main Spidle EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
Spindle Nose Threaded Threaded Threaded Threaded Threaded Threaded Threaded
Spindle Bore 80mm 104mm 104mm 104mm 104mm 104mm 104mm
Taper Bore MT-6 MT-6 MT-6 MT-6 MT-6 MT-6 MT-6
Tail Stock Spidle EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
Diameter 76mm 100mm 100mm 100mm 100mm 100mm 100mm
Morse Taper MT-5 MT-5 MT-5 MT-5 MT-5 MT-5 MT-5
Travel 260mm 260mm 300mm 300mm 300mm 300mm 300mm
Speed EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
No. of Speed 8 8 8 8 8 8 8
RPM Low & High 20-200RPM 20-200RPM 20-200RPM 20-200RPM 20-200RPM 20-200RPM 20-200RPM
Threads EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
Metric Thread (Total-13) / 1 to 6m.m. (Total-13) / 1 to 6m.m. (Total-13) / 1 to 6m.m. (Total-13) / 1 to 6m.m. (Total-13) / 1 to 6m.m. (Total-13) / 1 to 6m.m. (Total-13) / 1 to 6m.m.
Inch Thread (Total-20) / 1 to 24 TPI (Total-20) / 1 to 24 TPI (Total-20) / 1 to 24 TPI (Total-20) / 1 to 24 TPI (Total-20) / 1 to 24 TPI (Total-20) / 1 to 24 TPI (Total-20) / 1 to 24 TPI
Lead Screw Dia/thread 50.8mm / 2TPI 50.8mm / 2TPI 50.8mm / 2TPI 50.8mm / 2TPI 50.8mm / 2TPI 50.8mm / 2TPI 50.8mm / 2TPI
Electric EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
Suitable Electrical HP 7.5 HP III Phase 7.5 HP III Phase 7.5 HP /10 HP III Phase 10 HP III Phase 10 HP/ 15 HP III Phase 15 HP III Phase 15 HP III Phase
Drive EX.HD-457 EX.HD-508 EX.HD-558 EX.HD-610 EX.HD-660 EX.HD-710 EX.HD-760
Counter to Spindle C-88 C-88 C-88 C-88 C-88 C-88 C-88
Counter to Motor C-86 C-86 C-86 C-86 C-86 C-86 C-86
Model EX.HD 457 / 508 / 558
Length of Bed 7'(2135) 9'(2745) 10'(3040) 12'(3655) 14'(4270) 16'(4875) 18'(5472) 20'(6080)
Admin Between Centre 700mm 1300mm 1600mm 2200mm 2800mm 3400mm 4000mm 4600mm
Model EX.HD 610 / 660
Length of Bed 7'(2135) 9'(2745) 10'(3040) 12'(3655) 14'(4270) 16'(4875) 18'(5472) 20'(6080) 22'(6650)
Admin Between Centre 550mm 1150mm 1450mm 2050mm 2650mm 3250mm 3850mm 4450mm 5000mm
Model EX.HD 710 / 760
Length of Bed 9'(2745) 10'(3040) 12'(3655) 14'(4270) 16'(4875) 18'(5472) 20'(6080) 22'(6650) 24'(7270) 26'(7900) 28'(8500)
Admin Between Centre 900mm 1200mm 1800mm 2400mm 3000mm 3600mm 4200mm 4800mm 5400mm 6000mm 6600mm
Standard Accessories
  • Chuck Back Plate
  • Change Gear Set
  • Spindle Sleeve
  • Dead Centre-2nos.
  • Tool Post Key
  • Motor Pulley
  • Steady Rest
Optional Accessories
  • Spindle Bore 125/150/175
  • Bush or Tapper Roller Bearing
  • Flat Belt or "V" Belt
  • Norton Gear Box
  • Follow Rest
  • Rear Splash Guard
  • Dog & True Chuck
  • Electric Motor
  • Tapper Turning Attachment
  • Rear Tool Post
  • Face Plate
Significant Features
  • Flame Hardened Bed Ways
  • Tailstock Spindle EN-8 Harden
  • Lead screw Dia 2" x 2 TPI
  • Both Side Bearing 6208 baring on both side double Bearing (Total-4)
  • 18" Heavy Double gears along with Heavy Pulley
  • Heavy Change Gear Set 1.25" Thickness
  • Back side M.S.Panja Gear (Set-4) with 30mm Thickness and 9 D.P. Heavy Accordingly
  • "C" Section belts in main pulley and motor pulley.
  • Also Heaviest Machine in the segment accuracy as per IS Standard

Note: As improvements are constantly made in our machines, the above illustrations, specifications, dimensions and technical data are subject to odification and changewithout prior notice and not binding on us. The descriptions of standard accessories confirms to it's list and not the photograph of the machine shown I the catalogue
