"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

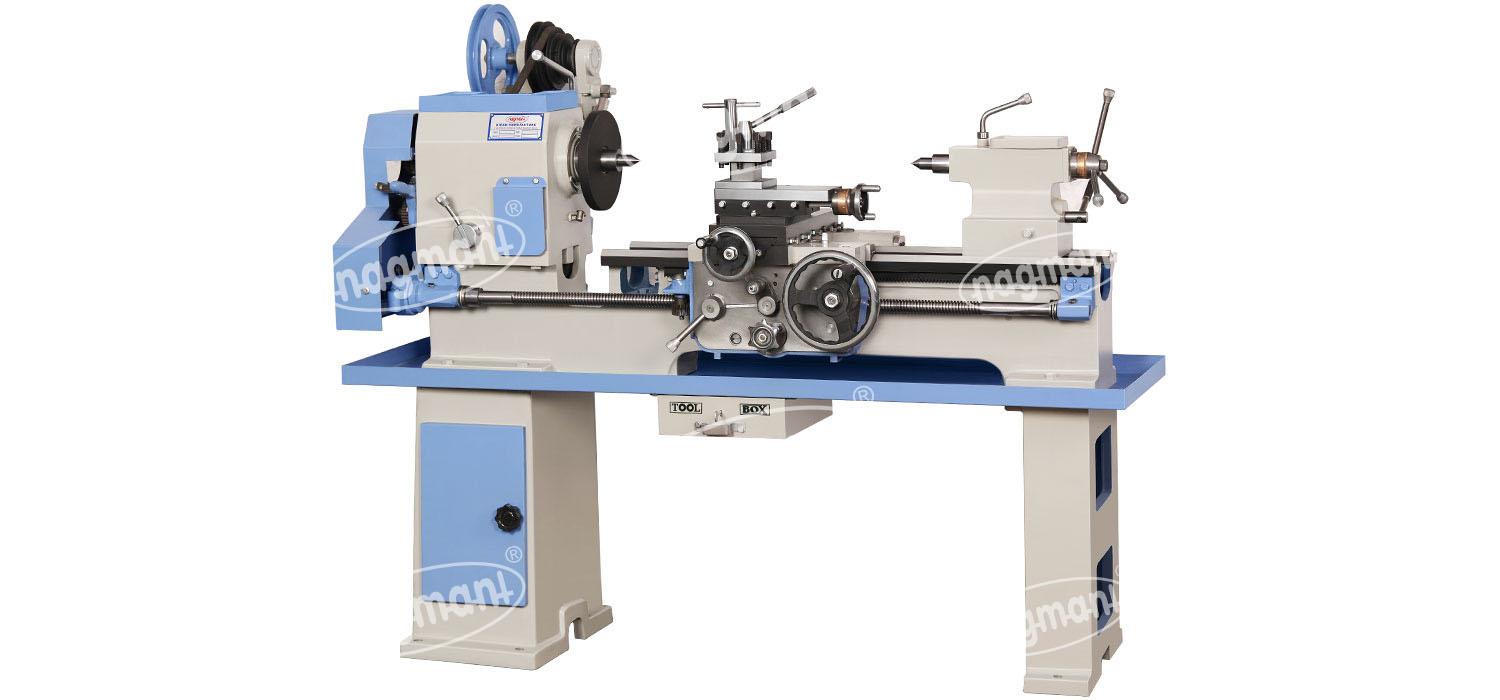

Cone Pulley Light duty lathe machines are used for small and micro Components and Repairing works to be finished and also used for Engineering technical training institutes.
| BED | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| Length of Bed | 4 1/2'(1372) | 5 1/2'(1676) | 6'(1830) |
| Width of Bed | 9 1/2"(240) | 9 1/2"(240) | 9 1/2"(240) |
| Length of Gap | 4"(102) | 4"(102) | 4"(102) |
| Length of Gap in Front of Fce Plate | 4.5"(115) | 4.5"(115) | 4.5"(115) |
| Capacity | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| Height of Centre | 7"(177) | 7"(177) | 7"(177) |
| Swing over Bed | 1.5"(343) | 1.5"(343) | 1.5"(343) |
| Swing over Cross Slide | 7.75"(200) | 7.75"(200) | 7.75"(200) |
| Swing in Gap | 21"(535) | 21"(535) | 21"(535) |
| Admin Between Centre | 29"(740) | 37"(960) | 46"(1190) |
| Movement of Cross Slide | 7"(177) | 7"(177) | 7"(177) |
| Movement of Compound Slide | 4.75"(120) | 4.75"(120) | 4.75"(120) |
| Main Spindle | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| Spindle Nose | 60 x 8 TPI | 60 x 8 TPI | 60 x 8 TPI |
| Spindle Bore | 1.5"(40) | 1.5"(40) | 1.5"(40) |
| Taper Bore | MT-5 | MT-5 | MT-5 |
| Speed | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| No. of Speed | 8 | 8 | 8 |
| RPM Low & High | 40 to 950 | 40 to 950 | 40 to 950 |
| Threads | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| Metric Thread | 1 to 6(13) | 1 to 6(13) | 1 to 6(13) |
| Inch Thread | 2 to 24(19) | 2 to 24(19) | 2 to 24(19) |
| Lead Screw Dia | 1"(25.4) | 1"(25.4) | 1"(25.4) |
| Electric | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| Motor Power | 1 HP III | 1 HP III | 1 HP III |
| Drive | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| Counter to Spindle | B-42 | B-42 | B-42 |
| Counter to Motor | B-53 | B-53 | B-53 |
| General | LD(DLX)-1 | LD(DLX)-2 | LD(DLX)-3 |
|---|---|---|---|
| Floor Space (L x W x H) Approx. Weight | 56" x 16" x 52" | 65" x 16" x 52" | 74" x 16" x 52" |
