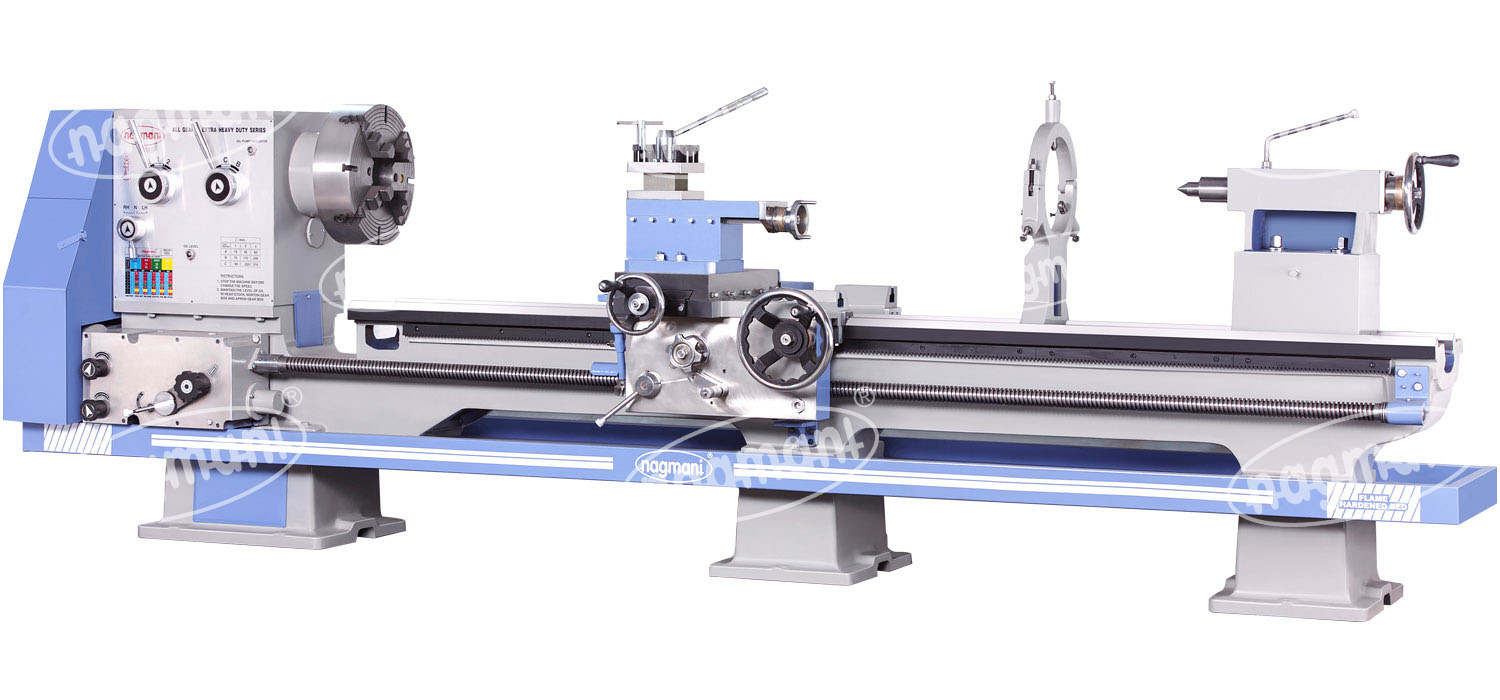

Extra Heavy Duty Geared Head Lathe Machine From Nagmani (INDIA)

EX HAG-406/457/508

"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

Extra Heavy Duty Geared Head Lathe Machine is specially Designed for the High RPM Upto 310. The Gears are equipped to obtain different speeds, which can be more than 9 Spindle speeds. This Machine is Widely used in Heavy Rubber Roll Mill, Extra Heavy Works, automobiles, power plants, aerospace, Etc

Get Catalogue GET E-Catalogue Have Questions? Question
Extra Heavy Duty Geared Head Lathe Machine
Available Colors
Buyer Blue
With Silver Grey
Vendra With
Silver Grey
Full
Ad. Grey
Full
Light Olive
Specification Features Accessories
Bed EX HAG 406 EX HAG 457 EX HAG 508
Flat & V Guide Way with Gap
Width of Bed 18"(457) 20"(508) 22"(558)
Length of Bed 6"(150) 6"(150) 6"(150)
Length of Gap in Front of Fce Plate 8"(200) 8"(200) 10"(250)
Capacity EX HAG 406 EX HAG 457 EX HAG 508
Height of Centre 16"(406) 18"(457) 20"(508)
Swing Over Bed 30"(760) 34"(860) 38"(950)
Swing Over Cross Slide 20"(500) 24"(600) 28"(700)
Swing In Gap  42"(1050) 46"(1150) 50"(1260)
Movement of Cross Slide 17"(430) 19"(480) 21"(525)
Movement of Compound Slide 9"(225) 9"(225) 9"(225)
Main Spidle EX HAG 406 EX HAG 457 EX HAG 508
Type of Spindle A2-8 type A2-8 type A2-8 type
Spindle Bore 104mm 104mm 104mm
Spindle Morse Taper MT-6 MT-6 MT-6
Spindle Adapter Morse Taper MT-4 MT-4 MT-4
No. of Speed / RPM Range 9 / 19-310 RPM 9 / 19-310 RPM 9 / 19-310 RPM
Tail Stock Spidle EX HAG 406 EX HAG 457 EX HAG 508
Diameter 76mm 76mm 76mm
Morce Taper MT-5 MT-5 MT-5
Travel 260mm 260mm 260mm
Threads (For Fully Norton Gear Box.) EX HAG 406 EX HAG 457 EX HAG 508
Metric Thread (Total-24) / 0.5 to 15m.m (Total-24) / 0.5 to 15m.m (Total-24) / 0.5 to 15m.m
Inch Thread (Total-43) / 2 to 60 TPI (Total-43) / 2 to 60 TPI (Total-43) / 2 to 60 TPI
Lead Screw Dia 50.8mm / 2TPI 50.8mm / 2TPI 50.8mm / 2TPI
Electricals EX HAG 406 EX HAG 457 EX HAG 508
Motor Power 7.5 HP III Phase 7.5 HP III Phase 7.5 HP/10HP III Phase
Model EX.HAG 406 / 457 / 508
Length of Bed 7'(2135) 9'(2745) 10'(3040) 12'(3655) 14'(4270) 16'(4875) 18'(5472) 20'(6080)
Admin Between Centre 700mm 1300mm 1600mm 2200mm 2800mm 3400mm 4000mm 4600mm
Standard Accessories
  • Flame Harden Bed Ways
  • Chuck Back Plate
  • Centre Adaptor
  • Tool Post Spanner
  • Three Pin Guide
  • Change Gear Set (For Metric and Inch Both)
  • Norton Gear Box.
Optional Accessories
  • Face Plate
  • Carrier Plate
  • Tapper Turning Attchment
  • Motorised Coolant Pump With Tank and Fittings
  • Rear Tool Post With Extended Cross Slide and Electricals (Motor, Panel Board, Wiring, Push Button Switch "V" - Belts and Fittings)
  • Switch Shaft and Chip
Significant Features
  • Flame Hardened Bed Ways
  • Head stock Gears are made up of Special Alloy steel with Hardening processes
  • Headstock Spindle runs on one Tapper Roller Bearing and one Ball Bearing in the Front Side and one Tapper Rollers on the Rear Side.
  • Rigid Headstock design for better performance of the machines
  • A2-8 type Spindle with EN-8 material for better Rigidity
  • Accuracy as per IS Standard
  • Tailstock Spindle EN-8 Harden
  • RPM Range 9 speed 19 to 310

Note: As improvements are constantly made in our machines, the above illustrations, specifications, dimensions and technical data are subject to odification and changewithout prior notice and not binding on us. The descriptions of standard accessories confirms to it's list and not the photograph of the machine shown I the catalogue
