Nagmani Lathe

Heavy Duty Geared
Head Lathe Machine From Nagmani (INDIA)

HAG-267

"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

Heavy Duty Geared Head Lathe Machine is specially Designed for the High RPM Upto 1060. The Gears are equipped to obtain different speeds, which can be more than 12 spindle speeds. This Machine is Widely used in automobiles, aerospace, textile, Die Works , Defense, Rough Turning, Facing Etc.

Get Catalogue GET E-Catalogue Have Questions? Question

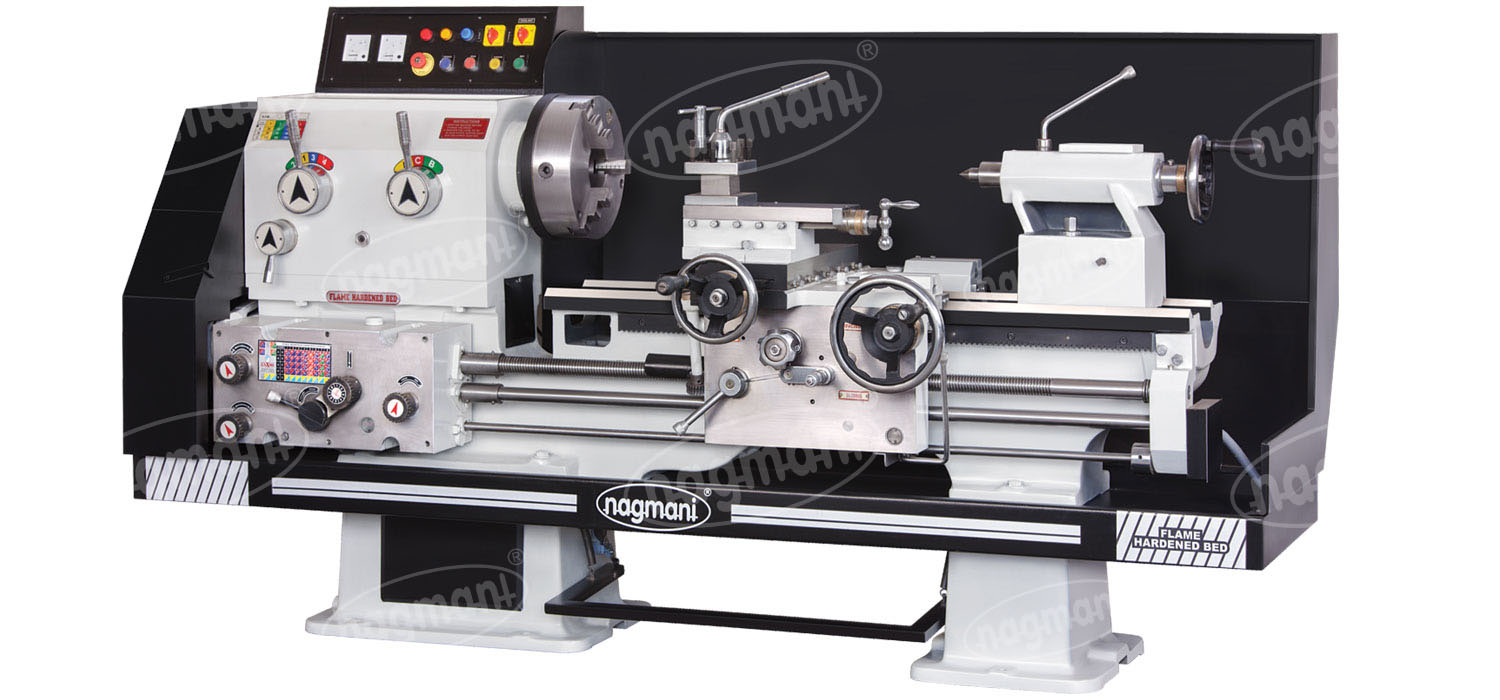

Heavy Duty Geared Head Deluxe Lathe Machine
Available Colors
Buyer Blue
With Silver Grey
Vendra With
Silver Grey
Full
Ad. Grey
Full
Light Olive
Specification Features Accessories
Bed HAG-1 HAG-2 HAG-3 HAG-4 HAG-5 HAG-6 HAG-7
Length of Bed 5 1/2'(1675) 7'(2135) 9'(2745) 10'(3040) 12'(3655) 14'(4270) 16'(4875)
Width of Bed 13"(325) 13"(325) 13"(325) 13"(325) 13"(325) 13"(325) 13"(325)
Length of Gap 6"(150) 6"(150) 6"(150) 6"(150) 6"(150) 6"(150) 6"(150)
Length of Gap in Front of Fce Plate 8"(200) 8"(200) 8"(200) 8"(200) 8"(200) 8"(200) 8"(200)
Main Spindle HAG-1 HAG-2 HAG-3 HAG-4 HAG-5 HAG-6 HAG-7
Type of Spindle
A2-6
Spindle Bore
55mm
Spindle Morse Taper
MT-6
Spindle Adapter Morse Taper
MT-4
No. of Speed / RPM Range
12 / 30 , 43 ,55 , 85 , 115 , 160 , 210 , 285 , 400 , 545 , 785 , 1060
Tailstock Spindle HAG-1 HAG-2 HAG-3 HAG-4 HAG-5 HAG-6 HAG-7
Diameter
2.25"(57mm)
Morce Taper
MT-4
Travel
7"(177)
Threads (For Fully Norton Gear Box.) HAG-1 HAG-2 HAG-3 HAG-4 HAG-5 HAG-6 HAG-7
Metric Thread
(Total 17) / 0.5mm to 15mm Pitch
Inch Thread
(Total 40) / 2 TPI to 60 TPI
Lead Screw Dia
1.50"(38mm) x 4 TPI
Electricals HAG-1 HAG-2 HAG-3 HAG-4 HAG-5 HAG-6 HAG-7
Motor Power
3 HP/2.25 Kw III Phase x 1440 RPM
General HAG-1 HAG-2 HAG-3 HAG-4 HAG-5 HAG-6 HAG-7
Specification
For std 10.5" Centre Height / Optional For 12" Centre Height
Height of Centre
10.5"(267mm) / 12"(305mm)
Swing Over Bed
20.5"(525mm) / 23.5"(600mm)
Swing Over Cross Slide
12"(300mm) / 15"(375mm)
Swing In Gap
32.5"(830mm) / 36"(910mm)
Floor Space(mm) 2200 x 1450 2660 x 1450 3140 x 1450 3500 x 1450 4110 x 1450 4720 x 1450 5330 x 1450
Approx Case Dimention (L x W x H) 2400 x 1300 x 1600 2850 x 1300 x 1600 3350 x 1300 x 1600 3700 x 1300 x 1600 4300 x 1300 x 1600 5000 x 1300 x 1600 5550 x 1300 x 1600
Standard Accessories
  • Flame Harden Bed Ways
  • Centre Adaptor
  • Tool Post Spanner
  • Three Pin Guide
  • Change Gear Set (For Metric and Inch Both)
  • Norton Gear Box.
  • Chuck Back Plate
  • Dead Centre-2nos.
  • Motor Pulley
  • Thread Dial Indicator
Optional Accessories
  • Face Plate
  • Carrier Plate
  • Tapper Turning Attchment
  • Motorised Coolant Pump With Tank and Fittings
  • Rear Tool Post With Extended Cross Slide and Electricals (Motor, Panel Board, Wiring, Push Button Switch "V" - Belts and Fittings)
  • Switch Shaft and Chip
  • Extra Chuck Back Plate
  • Two Pin Guide
  • Guard, Brake Motor
Significant Features
  • Flame Hardened Bed Ways
  • Rigid Headstock design for better performance of the machines
  • Head stock Gears are made up of Special Alloy steel with Hardening processes
  • A2-6 type Spindle with EN-8 material for better Rigidity
  • RPM Range 12 speed 30 to 1060
  • Accuracy as per IS Standard
  • Tailstock Spindle EN-8 Harden

Note: As improvements are constantly made in our machines, the above illustrations, specifications, dimensions and technical data are subject to odification and changewithout prior notice and not binding on us. The descriptions of standard accessories confirms to it's list and not the photograph of the machine shown I the catalogue
