Nagmani Lathe

Medium Duty Geared Head Deluxe Lathe Machine
From Nagmani (INDIA)

MAG(DLX)-215/250

"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

Medium Duty Geared Head Lathe Machine is Specially Designed for the high RPM upto 1200 / 8 Speed and also the Main drive of headstock is driven by gears which gives. Machine widely used in Engineering Colleges, Repairing Shop, Tool Room Workshop etc.

Get Catalogue GET E-Catalogue Have Questions? Question

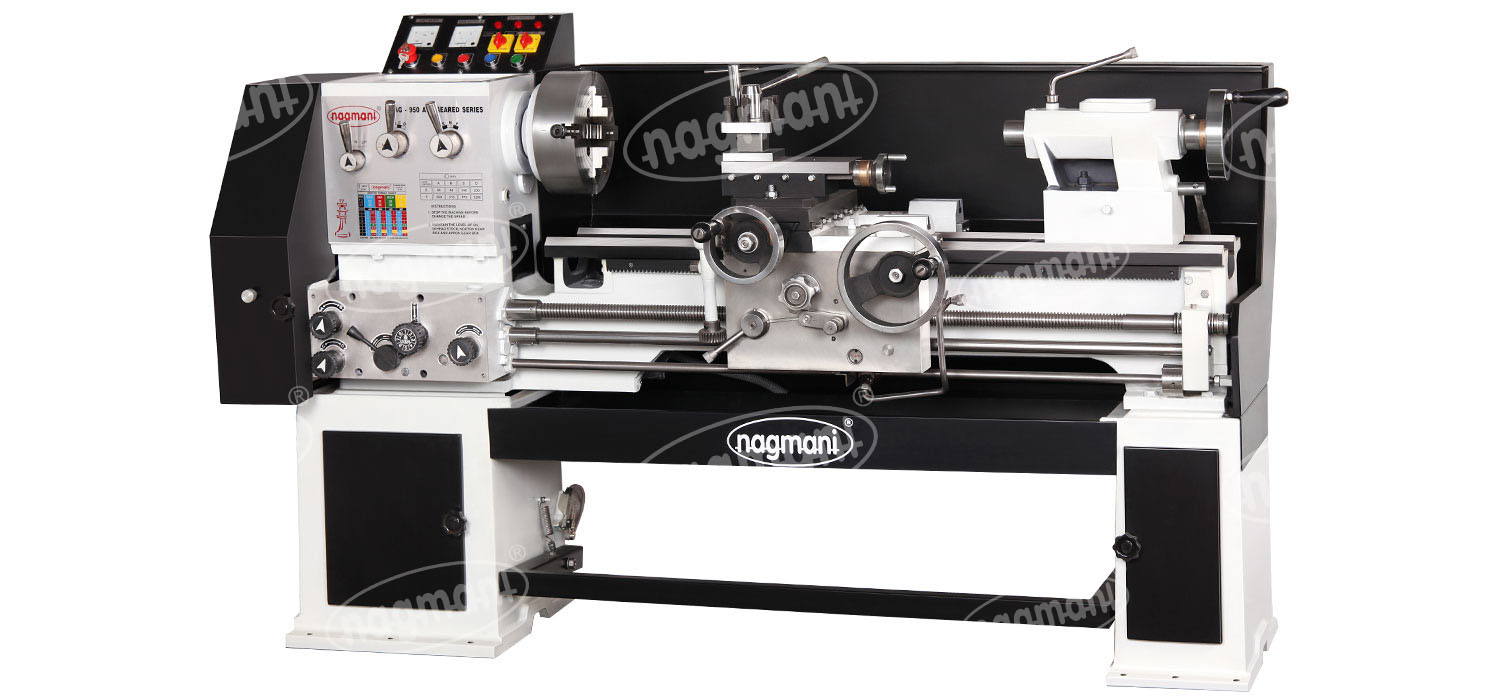

Medium Duty Geared Head Deluxe Lathe Machine
Available Colors
Buyer Blue
With Silver Grey
Vendra With
Silver Grey
Superior White
With Zed Black
Specification Features Accessories
Bed MAG(DLX)-1 MAG(DLX)-2 MAG(DLX)-3 MAG(DLX)-4
Length of Bed 4 1/2'(1372) 5 1/2'(1676) 6'(1830) 7'(2135)
Width of Bed 11"(280) 11"(280) 11"(280) 11"(280)
Length of Gap 4.5"(115) 4.5"(115) 4.5"(115) 4.5"(115)
Length of Gap in Front of Fce Plate 5"(130) 5"(130) 5"(130) 5"(130)
Capacity MAG(DLX)-1 MAG(DLX)-2 MAG(DLX)-3 MAG(DLX)-4
Height of Centre 8.5"(215) 8.5"(215) 8.5"(215) 8.5"(215)
Swing over Bed 16.5"(425) 16.5"(425) 16.5"(425) 16.5"(425)
Swing over Cross Slide 10"(250) 10"(250) 10"(250) 10"(250)
Swing in Gap 24"(610) 24"(610) 24"(610) 24"(610)
Admin Between Centre 20"(500) 32"(805) 38"(950) 50"(1255)
Movement of Cross Slide 10"(250) 10"(250) 10"(250) 10"(250)
Movement of Compound Slide 5.5"(140) 5.5"(140) 5.5"(140) 5.5"(140)
Main Spindle MAG(DLX)-1 MAG(DLX)-2 MAG(DLX)-3 MAG(DLX)-4
Type of Spindle
A2-4
Spindle Bore
40mm
Spindle morse Taper
MT-5
Spindle Adaptor Morce Taper
MT-3
No. of Speed / RPM Range
8 / 54 , 90 , 140 , 224 , 315 , 500 , 775 , 1200
Tail Stock Spindle MAG(DLX)-1 MAG(DLX)-2 MAG(DLX)-3 MAG(DLX)-4
Diameter 2"(50.8) 2"(50.8) 2"(50.8) 2"(50.8)
Morec Taper MT-4 MT-4 MT-4 MT-4
Travel 5"(125) 5"(125) 5"(125) 5"(125)
Threads (For Fully Norton Gear Box) MAG(DLX)-1 MAG(DLX)-2 MAG(DLX)-3 MAG(DLX)-4
Metric Thread
(Total 17) / 0.5mm to 15mm Pitch
Inch Thread
(Total 40) / 2 TPI to 60 TPI
Lead Screw Dia 32mm 32mm 32mm 32mm
Electricals MAG(DLX)-1 MAG(DLX)-2 MAG(DLX)-3 MAG(DLX)-4
Motor Power
General MAG(DLX)-1 MAG(DLX)-2 MAG(DLX)-3 MAG(DLX)-4
Floor Space(mm) 1550 x 900 1850 x 900 2000 x 900 2300 x 900
Approx Case Dimention (L x W x H) 1650 x 1000 x 1330 1950 x 1000 x 1330 2100 x 1000 x 1330 2400 x 1000 x 1330
Approx. Weight - - - -
Standard Accessories
  • Flame Harden Bed Ways
  • Dead Centre-2nos.
  • Thread dial indicator
  • Norton Gear Box.
  • Chuck Back Plate
  • Tool Post Spanner
  • Change Gear Set (For Metric and inch both)
  • Centre Adapter
  • Motor Pulley
Optional Accessories
  • Face Plate
  • Taper Turning Attachment, motorised Coolant Pump With Tank and Fittings.
  • Rear Tool Post With Extended Cross Slide
  • Electricals(Motor, Panel Board, Wirings, Push Button Switches, V-belts and fittings)
  • Electrical Switch Shaft and Chip guard
  • CarrierPlate
  • Chuck Back Plate(Extra)
  • Steady Rest
  • Follow Rest
Significant Features
  • Flame Hardened bed Ways
  • Gears made from EN-8 Material
  • A2-4 type Spindle with EN-8 Material for better Rigidity
  • Double Locking Type Tailstock
  • 8" Heavy Cross Slide & 5"x5" Heavy Tool Post
  • Tailstock Spindle EN-8 Harden
  • RPM Range 8 speed 54 to 1200
  • Accuracy as per IS Standard

Note: As improvements are constantly made in our machines, the above illustrations, specifications, dimensions and technical data are subject to odification and changewithout prior notice and not binding on us. The descriptions of standard accessories confirms to it's list and not the photograph of the machine shown I the catalogue
